AWS CDK for EC2 bastion host sharing Elastic IP with rest of VPC

import * as cdk from "aws-cdk-lib";
import { Construct } from "constructs";
import * as ec2 from "aws-cdk-lib/aws-ec2";
import fs from "fs";

/**
 * VPC, bastion host and fixed Elastic IP for all outbound internet traffic from
 * the VPC. This means that external services see the bastion host as connecting
 * from the same IP address as other resources in the VPC.
 */
export class BastionStack extends cdk.Stack {
  constructor(scope: Construct, id: string, props: cdk.StackProps) {
    super(scope, id, props);

    // Elastic IP for accessing external services with an IP access list.
    const elasticIp = new ec2.CfnEIP(this, "ElasticIP", {
      domain: "vpc",
    });

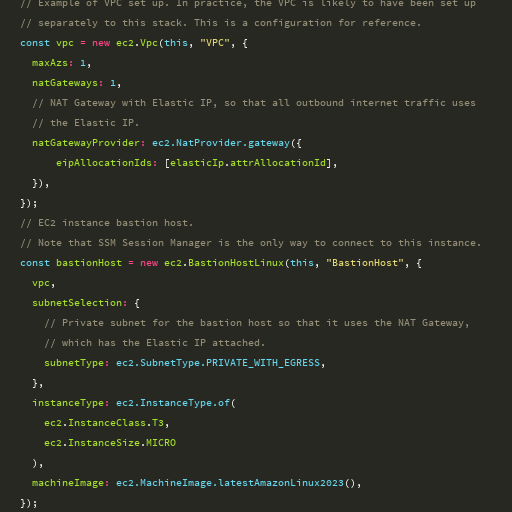

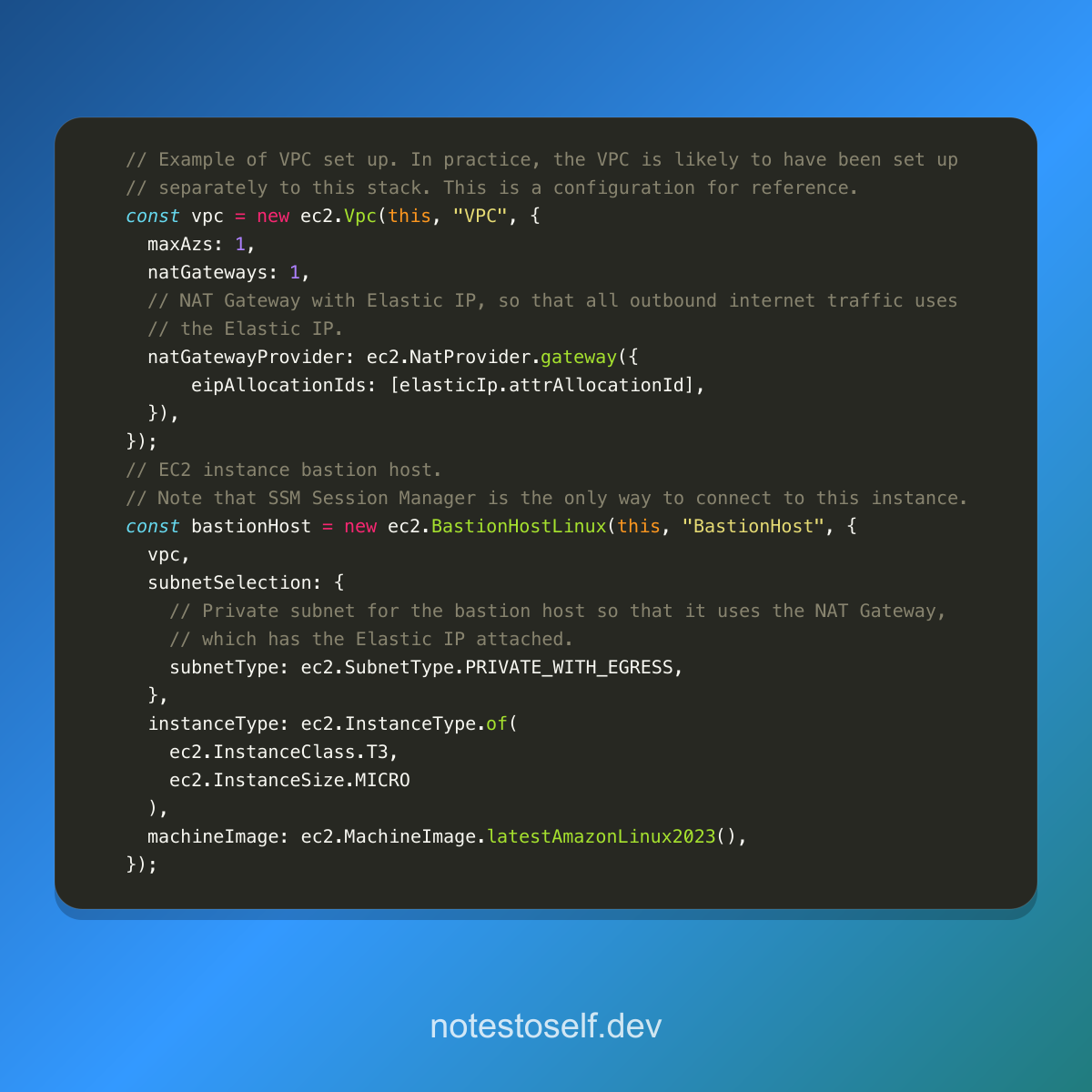

    // Example of VPC set up. In practice, the VPC is likely to have been set up
    // separately to this stack. This is a configuration for reference.

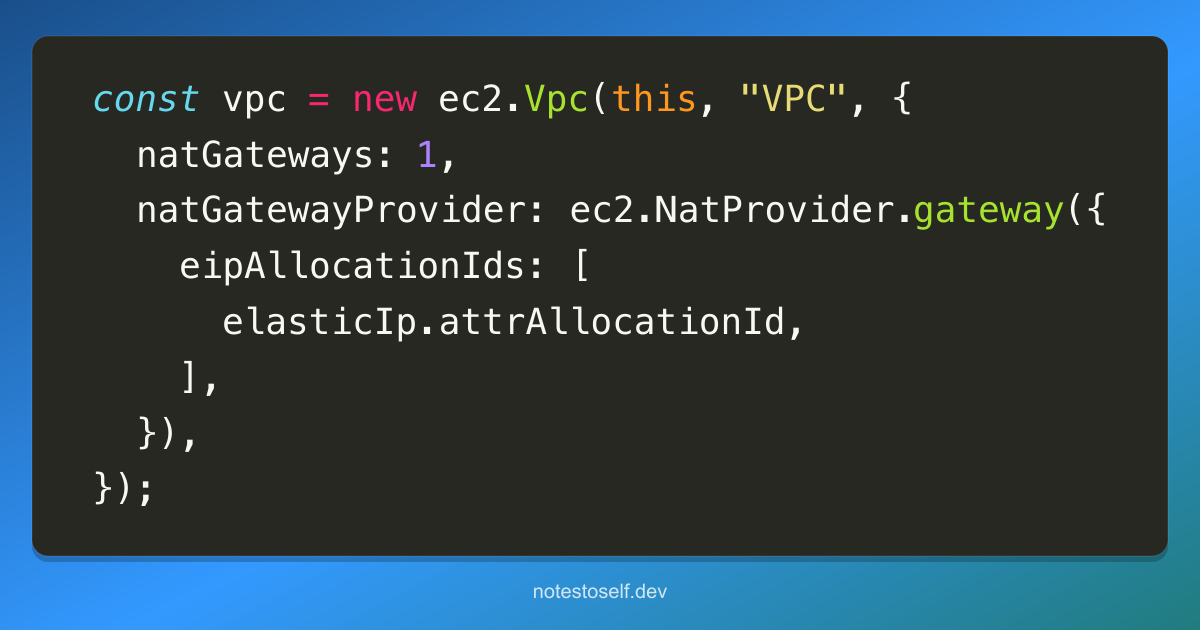

    const vpc = new ec2.Vpc(this, "VPC", {
      maxAzs: 1,
      natGateways: 1,
      // NAT Gateway with Elastic IP, so that all outbound internet traffic uses
      // the Elastic IP.
      natGatewayProvider: ec2.NatProvider.gateway({
          eipAllocationIds: [elasticIp.attrAllocationId],
      }),
    });

    // EC2 instance bastion host.
    // Note that SSM Session Manager is the only way to connect to this instance.
    const bastionHost = new ec2.BastionHostLinux(this, "BastionHost", {
      vpc,
      subnetSelection: {
        // Private subnet for the bastion host so that it uses the NAT Gateway,
        // which has the Elastic IP attached.
        subnetType: ec2.SubnetType.PRIVATE_WITH_EGRESS,
      },
      instanceType: ec2.InstanceType.of(
        ec2.InstanceClass.T3,
        ec2.InstanceSize.MICRO
      ),
      machineImage: ec2.MachineImage.latestAmazonLinux2023(),
    });

    // Optional: user data script to install packages on bastion host.
    bastionHost.instance.addUserData(
      fs.readFileSync(
        "path/to/ec2-bastion-host-setup.sh",
        "utf8"
      )
    );

    // Example: alternative if you want the Elastic IP to apply to the bastion
    // host only. The bastion host could then be in a public subnet and have its
    // own independent static IP address.
    // new ec2.CfnEIPAssociation(this, "ElasticIpAssociation", {
    //   allocationId: elasticIp.attrAllocationId,
    //   instanceId: bastionHost.instance.instanceId,
    // });

    new cdk.CfnOutput(this, "BastionHostInstanceId", {
      value: bastionHost.instance.instanceId,
    });

    new cdk.CfnOutput(this, "ElasticIp", {
      value: elasticIp.ref,
    });
  }
}
